01
HS75±3 Hardness
Stable Flaking Quality
Uniform hardened roller layer supports consistent flake quality and daily production stability.
Single-Machine Procurement Page

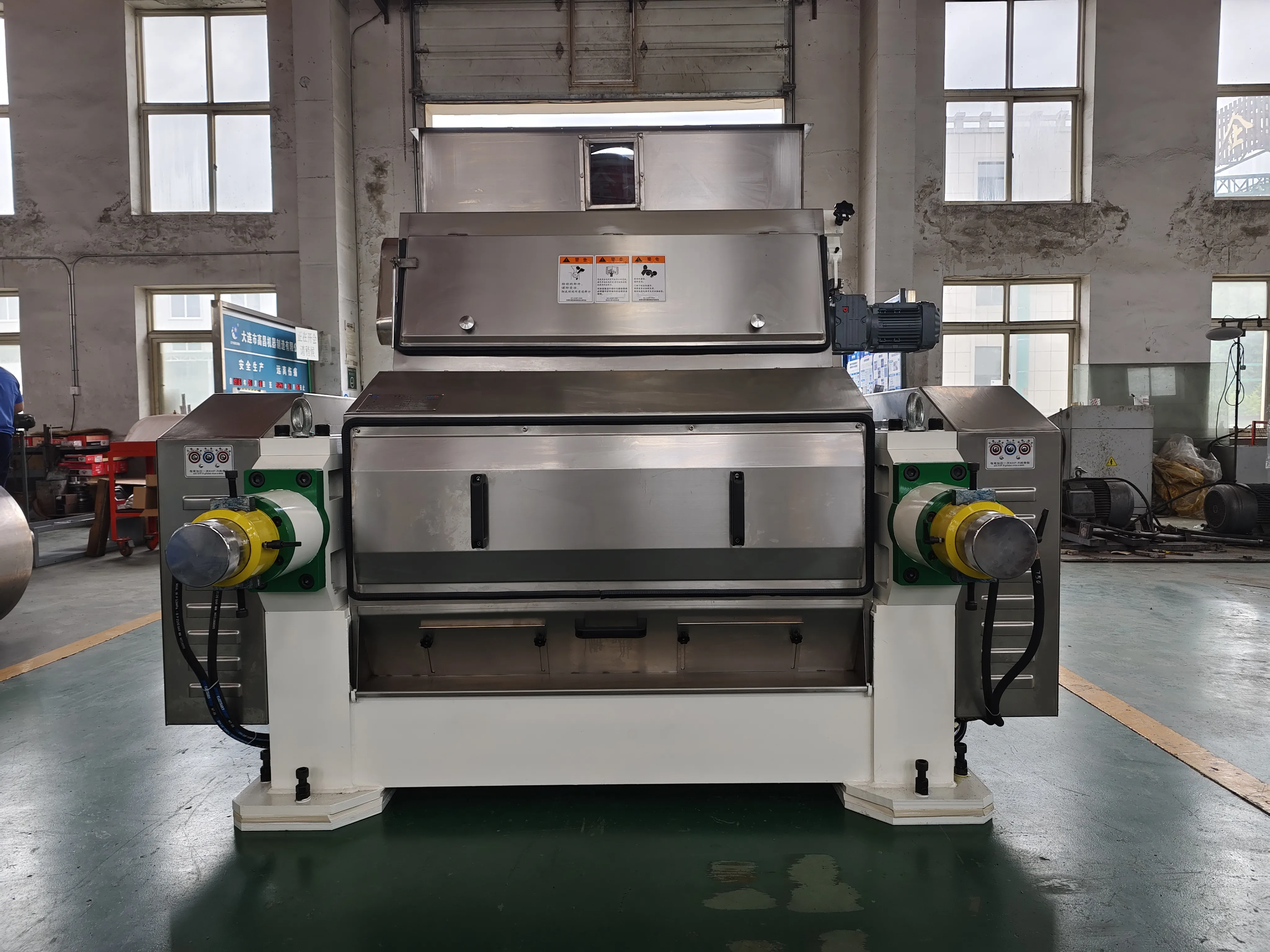

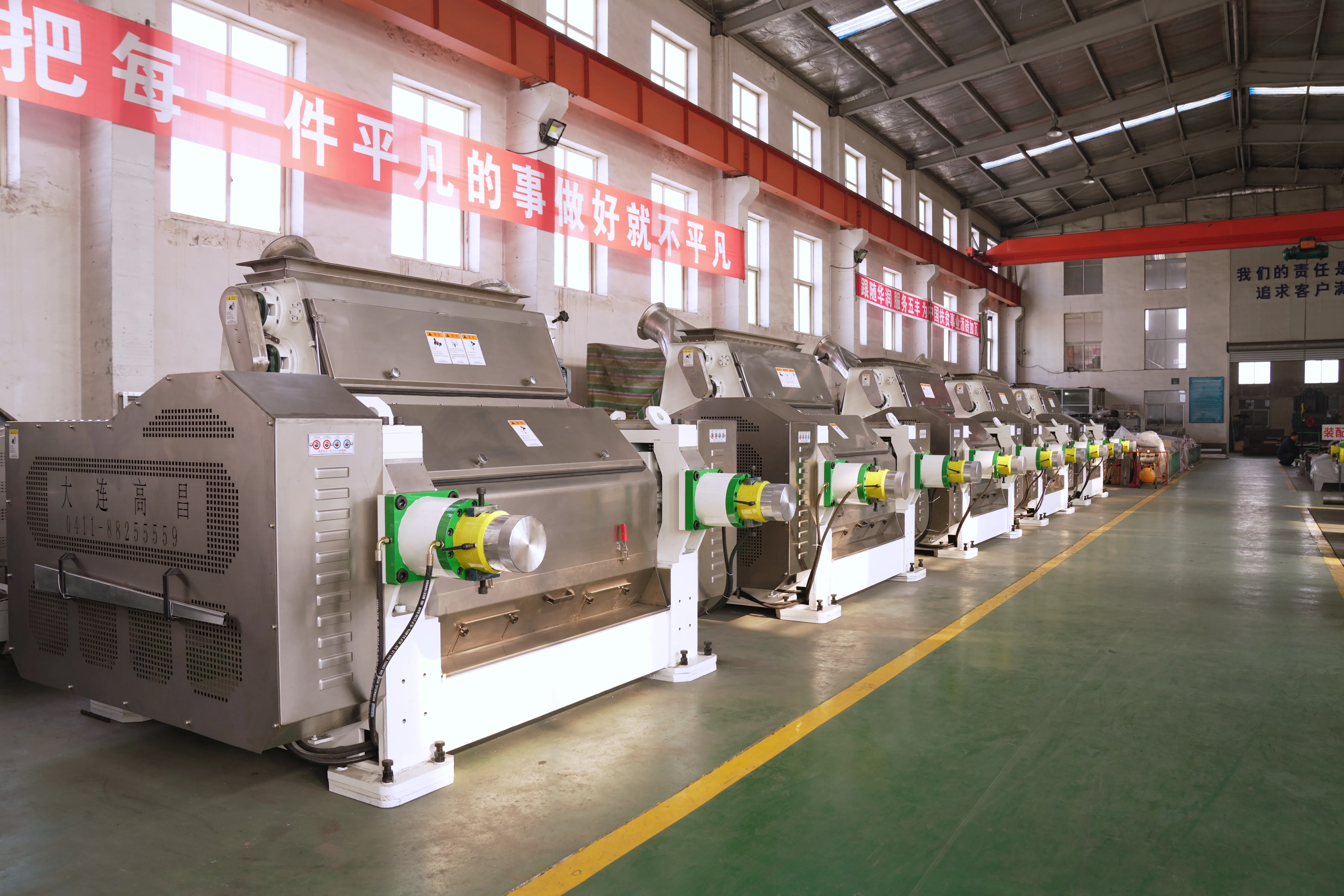

High-Stability Corn Flaking Mill for Feed Processing and Ruminant Performance
Built for overseas buyers who need a standalone machine rather than a full line. The Bellaex corn flaking mill features adjustable flake thickness, durable alloy rolls, and engineering support for both new installations and retrofit projects, ensuring stable performance and controlled operating costs.
50+Countries Delivered
150+Steam-Flaked Corn Reference Lines
Since 1997Family Manufacturing Heritage
National StandardParticipated in China steam flaked corn standard drafting
Core Advantages
Built for Buyers Starting with One Key Machine
This section targets practical first-step buyers: reliable flakes now, controlled investment now, and easy expansion later.
For Farms
Upgrading corn processing.
For Feed Plants
Adding a flaking step.
For Procurement Teams
Starting with one key machine first.
02
1.2-2 MM
Adjustable Thickness
Online thickness adjustment helps you adapt to material changes and target feed structure.
03

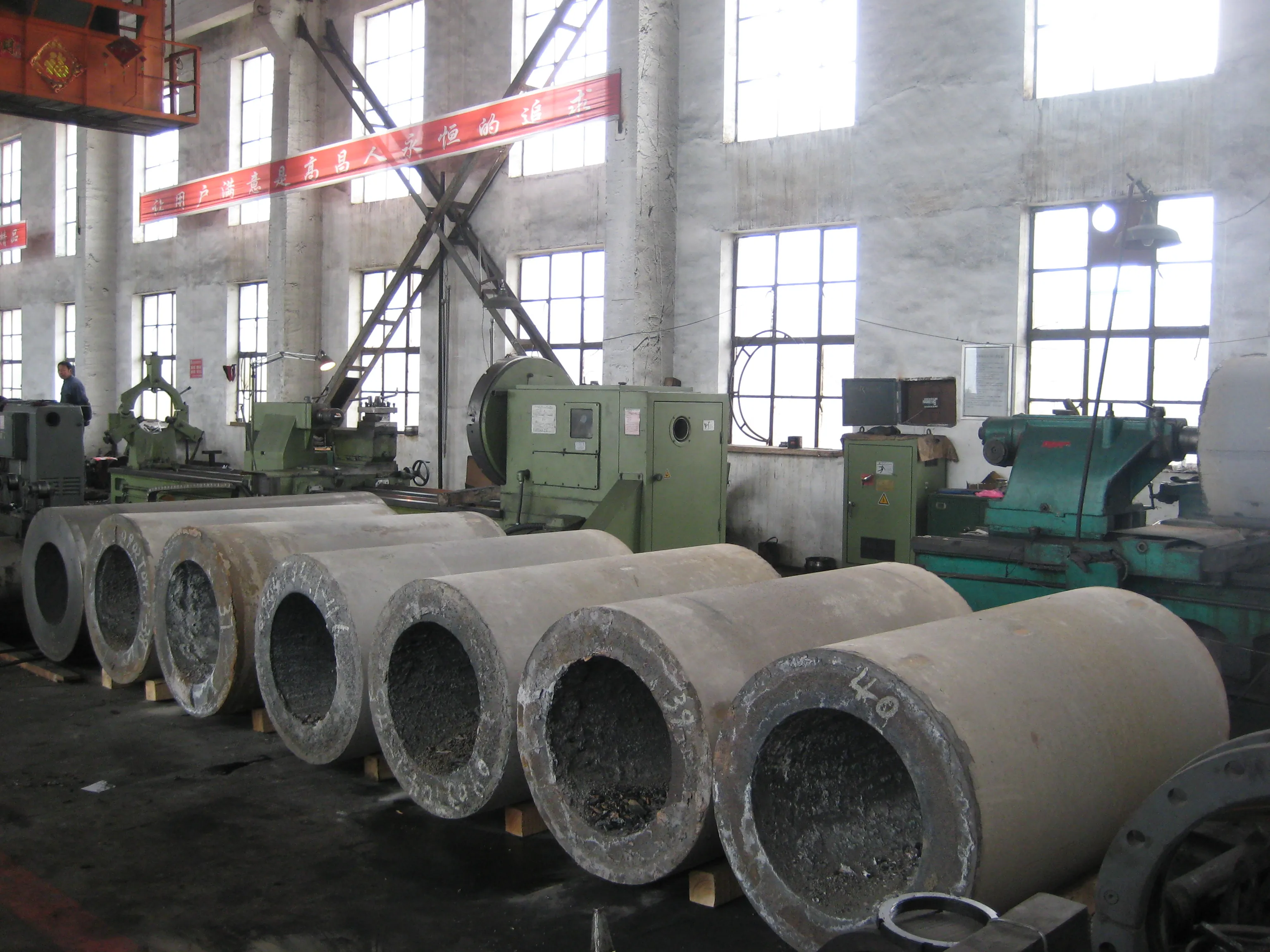

30-35 MM Alloy
Durable Rolls / Longer Service Life
High Ni-Cr-Mo centrifugal cast rollers are built for wear resistance and lower replacement frequency.
04
40-350 T/24H Range
Easy Integration / Lower Investment Entry
Start with one machine, connect to your current line, and reserve interfaces for full-line expansion.
Technical Highlights
Technical Highlights Across FC Models
Below are shared highlights and the model-by-model reference table. Configuration should be confirmed by Bellaex engineering for your material and plant conditions.

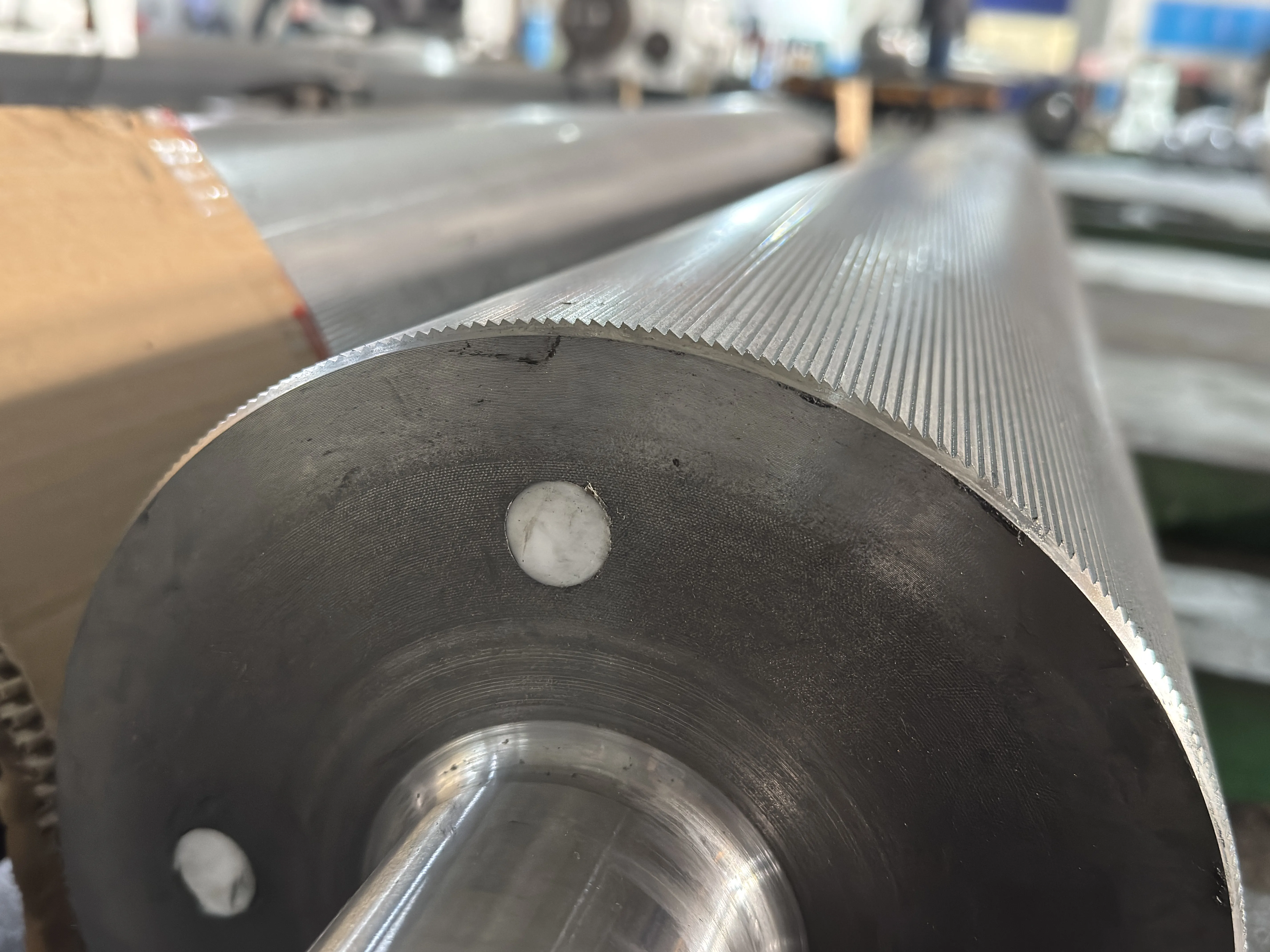

Roller Material
High Ni-Cr-Mo centrifugal cast rollers with uniform hardened layer.
Hardness / Alloy Layer
HS75±3 hardness and 30-35 mm alloy layer reference.
Hydraulic Tight Roll
Hydraulic roll pressure system with online thickness adjustment for stable operation.
Sealed Structure
Fully enclosed structure improves operation safety, while side cooling mesh helps heat dissipation and temperature control.
| Model | FC4080F |
|---|---|
| Reference Capacity | 40-50 T/24h |
| Flake Thickness | 1.2-2 mm, adjustable online |
| Roller Size | DIA400 x 800 mm |
| Alloy Layer | 20-25 mm |
| Roller Hardness | HS65-72 |
| Model | FC4150F |
|---|---|
| Reference Capacity | 80-100 T/24h |
| Flake Thickness | 1.2-2 mm, adjustable |
| Roller Size | DIA400 x 1500 mm |
| Alloy Layer | 20-25 mm |
| Roller Hardness | HS65-72 |
| Model | FC6050F |
|---|---|
| Reference Capacity | 30-40 T/24h |
| Flake Thickness | 1.2-2 mm, adjustable |
| Roller Size | DIA600 x 500 mm |
| Alloy Layer | 25-30 mm |
| Roller Hardness | HS75±3 |
| Model | FC6100F |
|---|---|
| Reference Capacity | 60-80 T/24h |
| Flake Thickness | 1.2-2 mm, adjustable |
| Roller Size | DIA600 x 1000 mm |
| Alloy Layer | 25-30 mm |
| Roller Hardness | HS75±3 |
| Model | FC6125F |
|---|---|
| Reference Capacity | 100-120 T/24h |
| Flake Thickness | 1.2-2 mm, adjustable |
| Roller Size | DIA600 x 1250 mm |
| Alloy Layer | 25-30 mm |
| Roller Hardness | HS75±3 |
| Model | FC6150F |
|---|---|
| Reference Capacity | 150-180 T/24h |
| Flake Thickness | 1.2-2 mm, adjustable |
| Roller Size | DIA600 x 1500 mm |
| Alloy Layer | 25-30 mm |
| Roller Hardness | HS75±3 |
| Model | FC7150F |
|---|---|
| Reference Capacity | 200-220 T/24h |
| Flake Thickness | 1.2-2 mm, adjustable |
| Roller Size | DIA711 x 1500 mm |
| Alloy Layer | 30-35 mm |
| Roller Hardness | HS75±3 |
| Model | FC7150SF |
|---|---|
| Reference Capacity | 200-220 T/24h |
| Flake Thickness | 1.2-2 mm, adjustable |
| Roller Size | DIA711 x 1500 mm |
| Alloy Layer | 30-35 mm |
| Roller Hardness | HS75±3 |
| Model | FC7175SF |
|---|---|
| Reference Capacity | 220-240 T/24h |
| Flake Thickness | 1.2-2 mm, adjustable |
| Roller Size | DIA711 x 1750 mm |
| Alloy Layer | 30-35 mm |
| Roller Hardness | HS75±3 |
| Model | FC8210SF |
|---|---|
| Reference Capacity | 300-350 T/24h |
| Flake Thickness | 1.2-2 mm, adjustable |
| Roller Size | DIA812 x 2133 mm |
| Alloy Layer | 30-40 mm |
| Roller Hardness | HS75±3 |
Applications
Applications and Material Fit
The FC series corn flaking mill supports ruminant feed processing for corn and other grains. Material condition and final ration targets determine the best thickness and throughput.
Typical Raw Materials
Corn, oats, peas, black beans, soybeans, barley, and similar grains depending on process route.
CornOatsPeasBlack BeansSoybeansBarley| Material Type | Typical Flake Thickness | Notes |
|---|---|---|
| Corn | 1.2-2 mm (adjustable) | Standard ruminant feed program thickness range. |
| Oats / Barley | 1.2-2 mm (adjustable) | Confirm target ration and moisture with engineering. |
| Peas / Soybeans | 1.2-2 mm (adjustable) | Final thickness depends on conditioning and nutrition plan. |
Capacity varies by material and process setup. Reference output range across models: 40-350 T/24h.

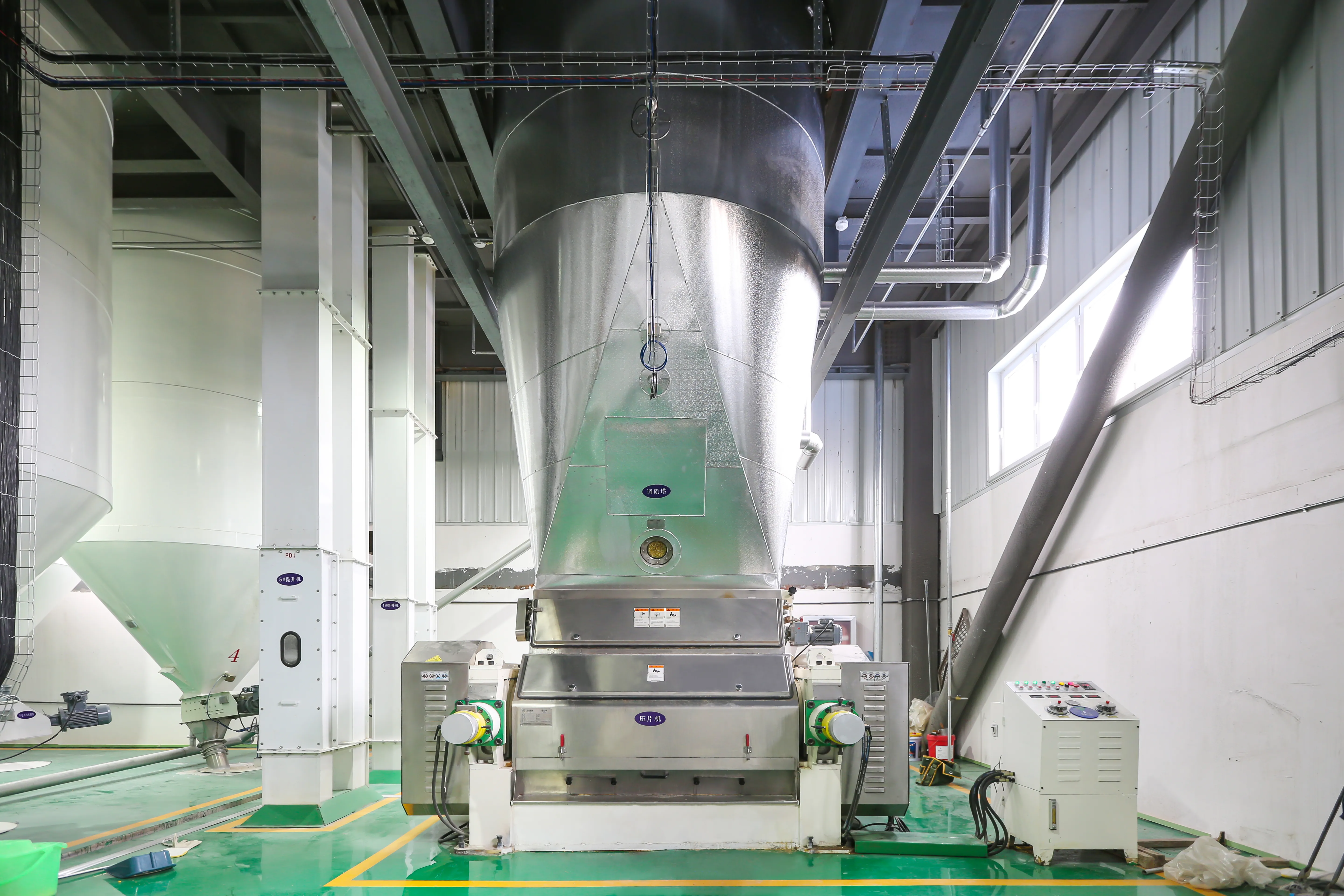

Single-Machine Feed Mill Setup
Single-machine deployment for feed mills: fast installation, practical process integration, and stable daily output.

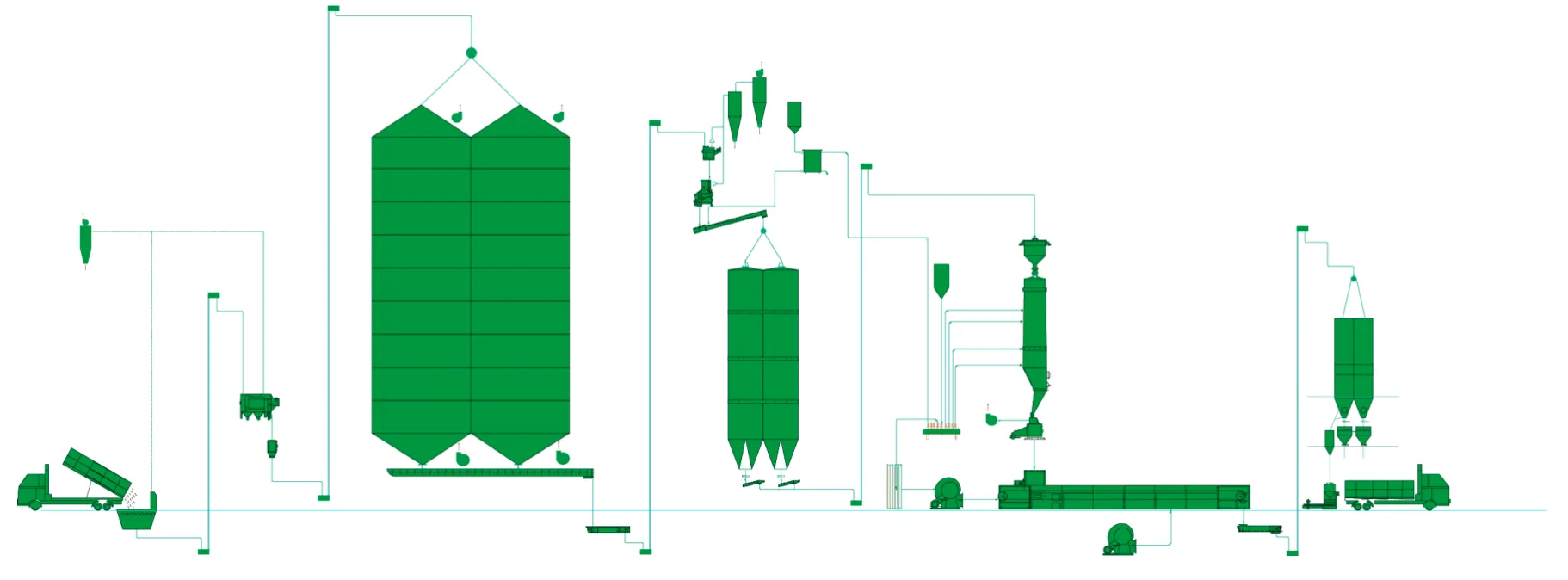

Farm Corn Processing Upgrade
From basic corn handling to steam-flaked feed processing: clearer process path, better consistency, and upgrade-ready layout.

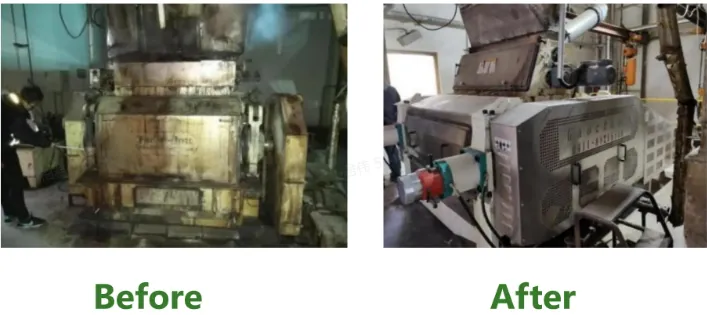

Line Capacity Expansion
Before: previous supplier line. After: upgraded by Bellaex retrofit solution.
Integration
How This Machine Integrates into Your Line
A quick integration map for buyers: upstream required equipment, machine position, downstream connection, and expansion from single machine to full line.
UpstreamCleaner + conditioner
→
Machine PositionCorn flaking mill
→
DownstreamDryer/cooler + conveying
→
ExpansionUpgrade to complete line
Use as a Standalone Flaking Unit
Best for projects that need fast deployment with controlled entry investment.
- Connect with existing conditioner or basic steam setup.
- Run with your current downstream handling modules.
- Prioritize one critical machine first, then optimize step by step.
Expand into an Integrated Steam Flaked Corn Line
Best for expansion plans targeting higher throughput and full process consistency.
- Define utility balance from steaming to cooling and storage.
- Coordinate equipment interfaces and capacity bottlenecks in advance.
- Build upgrade path from single machine to full-line operation.
Need a Complete Steam Flaked Corn Line Instead?
If your scope is beyond a single machine, Bellaex can also support turnkey steam flaked corn equipment delivery, from process definition to integrated line planning. You can start with one machine and scale to a full line when ROI and capacity goals are confirmed.
WHY CHOOSE BELLAEX
Project Video
Embedded playbackWhy contact us
Why Prospects Will Contact You
Bellaex combines long-term manufacturing background, in-house factory capability, overseas project experience, and China supply-chain advantages to help you evaluate and move your steam-flaked corn project forward more efficiently.
Own Manufacturing Base
Bellaex is backed by a long-term manufacturing foundation with in-house production capability, helping buyers verify build quality and delivery control.
Proven Process Experience
From conditioning to flaking and downstream handling, Bellaex supports practical process decisions with references from real ruminant feed projects.
Overseas Project Support
With multi-country delivery background, Bellaex helps evaluate integration risks, communication efficiency, and execution requirements for overseas buyers.
From Single Machine to Full Line
Start with a standalone corn flaking mill and expand into a complete steam flaked corn line when your capacity and ROI targets are ready.
Proof chain
REFERENCE PROJECTS & PROOF
Review the Project References and Manufacturing Proof Before You Decide
You can review Bellaex manufacturing capability, core machine strength, industry credibility, and representative project cases before deciding whether this corn flaking mill fits your project.
This helps you reduce selection and communication risk earlier.
Manufacturing Capability & Quality Foundation
Review Bellaex manufacturing background, core machine capability, and quality details to judge reliability.
Family manufacturing heritage since 1997
National invention patent for the core corn flaking mill
Key roll and hydraulic adjustment capability for evaluation
Industry Experience & Project Credibility
Evaluate whether the solution is proven and supportable by reviewing project experience.
150+ steam-flaked corn reference lines worldwide
Trusted by customers in 50+ countries
Participated in developing China’s national standard
Project Video
Reference footage from a steam-flaked corn line
Lead friction control
FAQ
Before sending your inquiry, you can review these common questions to quickly clarify project fit, supply scope, and the next step for discussion.
1
What should be confirmed first for a corn flaking mill project?
It is best to confirm raw material condition, target capacity, application, expected product requirements, available steam and power, and any site or building constraints first.
2
What if I only have an initial idea and not a full plan yet?
That is fine. Many prospects start from an initial concept. Share your intended application, rough capacity range, and basic site information, and we can help structure the next-step requirements.
3
Can Bellaex supply only the core machine?
Yes. Bellaex can discuss either core flaking machine supply or a more complete line package. The suitable scope depends on your process target, existing equipment, utilities, and integration requirements.
4
What information should I share to get a suitable recommendation?
Please share your raw material, target capacity, application, available steam and power, site limitations, and any existing equipment you already have. The more complete the information is, the more accurate the recommendation will be.
Download Project Materials
If you are already evaluating a project, you can download these materials to support internal discussion on equipment configuration, process flow, and project requirements.
+
NEXT STEP
Get Your Machine Recommendation
Share your raw material, target capacity, project application, and basic site conditions.
The Bellaex team will review your information and reply with a suitable process direction and equipment configuration recommendation for your project.
